Excellent performance/size ratio
高性能/结构紧凑
Screw-on version from front rear side
螺丝两边固定
Optional medical versions((5) type)
医疗设备专用(R5)系列
Quick connect(6.35*0.8mm),solder or wire
多种输出方式（插片端子，焊接端子，线材）
Technical Data 技术参数
| Max continuous operating voltage(最大电压): | 250VAC,50/60Hz |
| Operating frequency(工作频率): | DC to 400Hz |
| Rated currents(额定电流): | 1~10A@40°C |
| High potential test voltage(耐电压): | L-N 1450VDC |
| L/N-G 2000VAC/2250VDC | |
| L/N-G 4000VAC(R5 type) | |
| Protection category(防护等级): | IP40 according to IEC 60529 |
| Climatic category(气候类别): | -25°C~+85°C(25/85/21) |
| Design corresponding to(设计标准): | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to(防火等级): | UL 94V-0 |
Features 产品特点

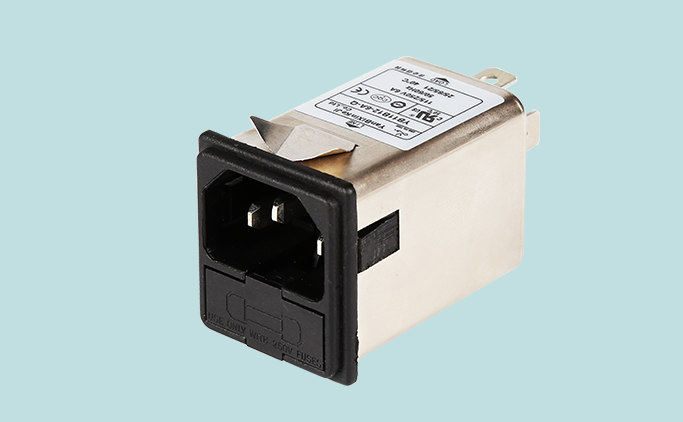

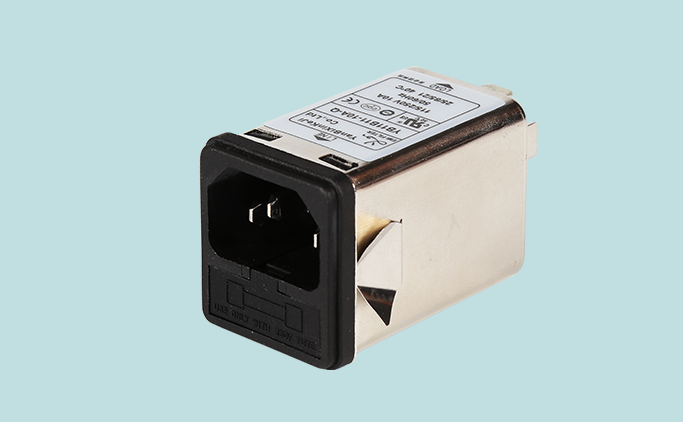

Versions to 10A are available with fuse holder for one or two (5*20mm) fuses
--最高达到10A有一个或两个(5*20mm)保险丝
(R5) types comply with the requirements of IEC/EN60601-1 for creepage and clearance, leakage current and high potential testing.
--(R5)医疗专用产品依据IEC/EN60601-1标准对安全间隙，低漏电流和超高耐压要求设计。
There are a variety of parts and combinations to meet different customers' EMC tests
--有多种零件组合搭配，来满足不同客户整机EMC测试
Customized products according to customers' requirements
--可按客户要求定制不同规格产品
Typical Applications 应用范围
Portable electrical and electronic equipment
--便携式电器和电子设备
Medical equipment
--医疗设备
Test and measurement equipment
--测量测试设备
Small to medium-sized machines and household equipment
--中小型机械设备和家用设备

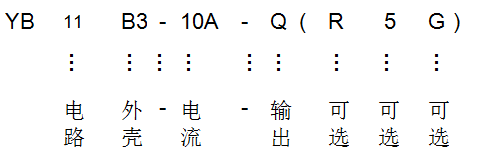

命名原则说明
