单相电源滤波器

YB-12单相通用型滤波器

发布时间:2019   点击量:1234

{$Productitle$}

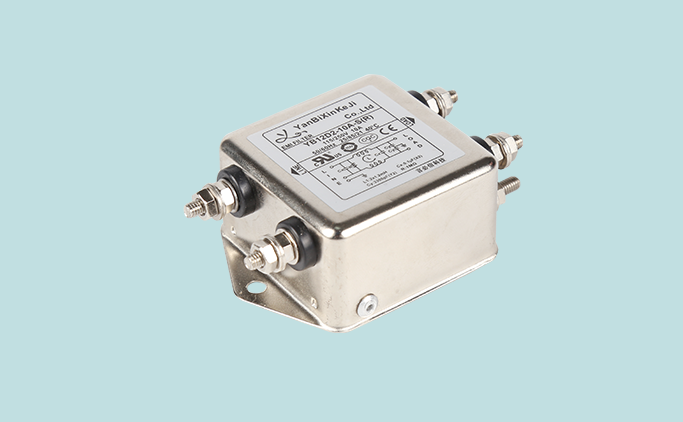

    • YB-12单相通用型滤波器
    • YB-12单相通用型滤波器

Rated currents from 1 to 50A

额定电流1~50A

General purpose filtering performance

通用滤波性能

Optional medical versions((R5) type)

医疗设备专用(R5)系列

Approvals(认证):

单相认证



Technical Data 技术参数

Max continuous operating voltage(最大电压):  250VAC,50/60Hz
Operating frequency(工作频率): DC to 400Hz
Rated currents(额定电流): 1~50A@40°C
High potential test voltage(耐电压): L-N 1450VDC
L/N-G 2000VAC/2250VDC
Climatic category(气候类别): -25°C~+85°C(25/85/21)
Design corresponding to(设计标准): UL1283, CSA C22.2 No.8,
  IEC/EN 60939,
CQC GB 15288/GB 15287-2008
Flammability corresponding to(防火等级): UL 94V-0



Features 产品特点

Can be used to cover a broad range of usage and they offer a good size/amperage

--紧凑的体积,能够应用在各种场合中。

YB11 filters are also available as two-stage filters(YB35) for more noisy environmment

--YB11系列滤波器也可以串2个当做YB35系列产品使用在嘈杂环境中。

There are a variety of parts and combinations to meet different customers' EMC tests

--有多种零件组合搭配,来满足不同客户整机EMC测试

Customized products according to customers' requirements

--可按客户要求定制不同规格产品



Typical Applications 应用范围

Electrical and electronic equipment

--电子电气设备

Medical equipment

--医疗设备

Single-phase power supplies, switch-mode power supplies

--单相电源,开关模式电源

Small to medium-sized machines and?household equipment

--中小型机械设备和家用设备

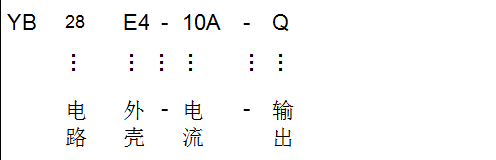

命名原则说明



Tabulates 产品列表

Model No. Rated Current
@40°C
额定电流

Terminal

Options*

输出方式

Bleeder resistor

(optional)

泄放电阻R(可选)

Leakage current

250V/50Hz

漏电流

Electrical

Schematic

电路图

Rated

Voltage(V)

额定电压

Operating

Frequency(Hz)

工作频率

型号
YB12E3-1A 1A Q - W - <0.8mA Fig.1 115/250V 50/60Hz
YB12E3-3A 3A Q - W - Fig.1
YB12E3-6A 6A Q - W - Fig.1
YB12E4-1A 1A Q S W - Fig.1
YB12E4-3A 3A Q S W - Fig.1
YB12E4-6A 6A Q S W - Fig.1
YB12E4-8A 8A Q S W - Fig.1
YB12E4-10A 10A Q S W - Fig.1
YB12E4-15A 15A Q S - - Fig.1
YB12E4-20A 20A Q S - - Fig.1
YB12D1-1A 1A Q - W - Fig.1
YB12D1-3A 3A Q - W - Fig.1
YB12D1-6A 6A Q - W - Fig.1
YB12D2-6A 6A Q S W - Fig.1
YB12D2-8A 8A Q S W - Fig.1
YB12D2-10A 10A Q S W - Fig.1
YB12D2-15A 15A Q S - - Fig.1
YB12D2-20A 20A Q S - - Fig.1
YB12D3-10A 10A Q S W - Fig.1
YB12D3-15A 15A Q S - - Fig.1
YB12D3-20A 20A Q S - - Fig.1
YB12D3-30A 30A - S - - Fig.1
YB12D4-30A 30A - S - - Fig.1
YB12D5-30A 30A - S - - Fig.1
YB12F1-30A 30A - S - - Fig.1
YB12F1-40A 40A - S - - Fig.1
YB12F2-30A 30A - S - - Fig.1
YB12F2-40A 40A - S - - Fig.1
YB12F3-40A 40A - S - - Fig.1
YB12F3-50A 50A - S - - Fig.1
YB12F4-50A 50A - S - - Fig.1



医疗专用产品列表

Model No. Rated Current
@40°C
额定电流
Terminal Options
输出方式

Bleeder resistor

(optional)

泄放电阻R(MΩ)

Medical

equipment

医疗专用
5

Leakage current

250V/50Hz

漏电流

Electrical

Schematic

电路图

Rated

Voltage(V)

额定电压

Operating

Frequency(Hz)

工作频率

型号
YB12E3-1A-x(5) 1A Q - W 1 5 <5μA Fig.2 115/250V 50/60Hz
YB12E3-3A-x(5) 3A Q - W 1 5 Fig.2
YB12E3-6A-x(5) 6A Q - W 1 5 Fig.2
YB12E4-1A-x(5) 1A Q S W 1 5 Fig.2
YB12E4-3A-x(5) 3A Q S W 1 5 Fig.2
YB12E4-6A-x(5) 6A Q S W 1 5 Fig.2
YB12E4-8A-x(5) 8A Q S W 1 5 Fig.2
YB12E4-10A-x(5) 10A Q S W 1 5 Fig.2
YB12E4-15A-x(5) 15A Q S - 1 5 Fig.2
YB12E4-20A-x(5) 20A Q S - 1 5 Fig.2
YB12D1-1A-x(5) 1A Q - W 1 5 Fig.2
YB12D1-3A-x(5) 3A Q - W 1 5 Fig.2
YB12D1-6A-x(5) 6A Q - W 1 5 Fig.2
YB12D2-6A-x(5) 6A Q S W 1 5 Fig.2
YB12D2-8A-x(5) 8A Q S W 1 5 Fig.2
YB12D2-10A-x(5) 10A Q S W 1 5 Fig.2
YB12D2-15A-x(5) 15A Q S - 1 5 Fig.2
YB12D2-20A-x(5) 20A Q S - 1 5 Fig.2
YB12D3-10A-x(5) 10A Q S W 1 5 Fig.2
YB12D3-15A-x(5) 15A Q S - 1 5 Fig.2
YB12D3-20A-x(5) 20A Q S - 1 5 Fig.2

*Q: Fast-on 6.35x0.8mm   S: Screw lug     W: Wire UL1015 18AWG



Electrical schematic 电路图
                        R5type                                              typeStandard

                         Fig.1                                                       Fig.2

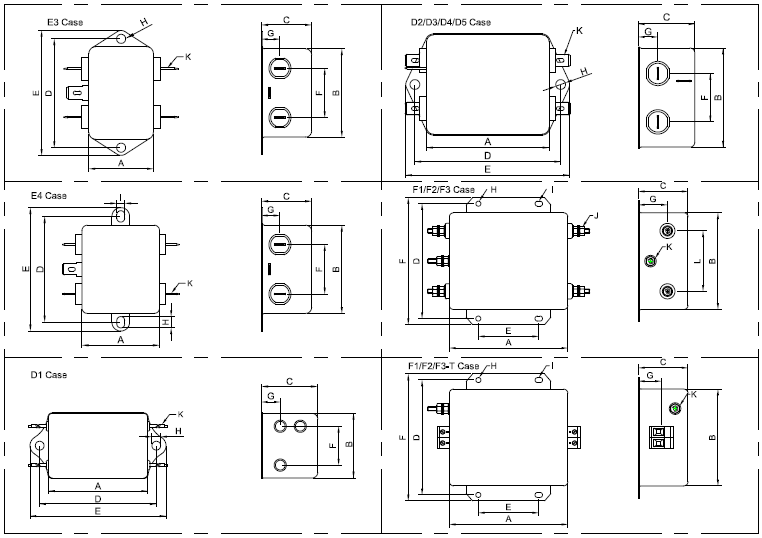

Mechanical Dimension外形图(Unit: mm)


Case E3 E4 D1 D2 D3 D4 D5 F1 F2 F3 F4 Tolerances
公差
A 32 44.5 51 51 63 63 73 72 98 120 150 ±1
B 46 50.5 33 51 51 51 56 65 80 100 105 ±1
C 22.5 30 29 21 29 38 44.5 39 41 50 60 ±1
D 54 61.5 60 63 75 75 87 75 95 115 120 ±0.15
E 62 70.5 68 72 85 85 98 45 50 80 90 ±1
F 24 28 20 27 25 27 30 35 50 60 60 ±0.5
G 12.5 10.5 10 10 10 15.5 16 22 24 26 35 ±0.5
H 4.5 6 4.5 4.5 5 4.5 4.5 4.2 4.2 4*6 4*6 ±0.15
I 4.5 4.2*6.2 4.2*6.2 4*6 4*6 ±0.15
J M4/M6 M4/M6 M4/M6 M4/M6
K 6.3*0.8 6.3*0.8 UL 1015 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 M4 M4 ±0.15
L 35 50 60 60 ±2


Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统,IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                         1A                                                                            3A



                          6A                                                                          8A



                          10A                                                                        20A



                            30A
