单相电源滤波器

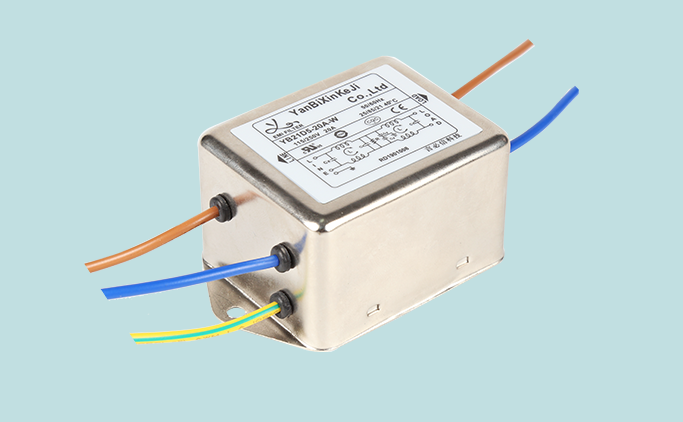

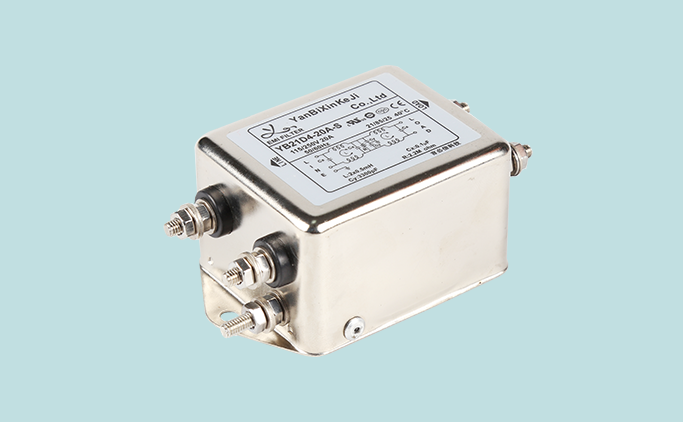

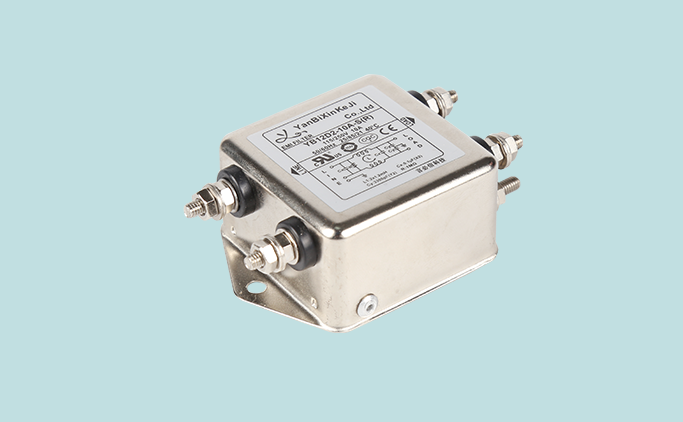

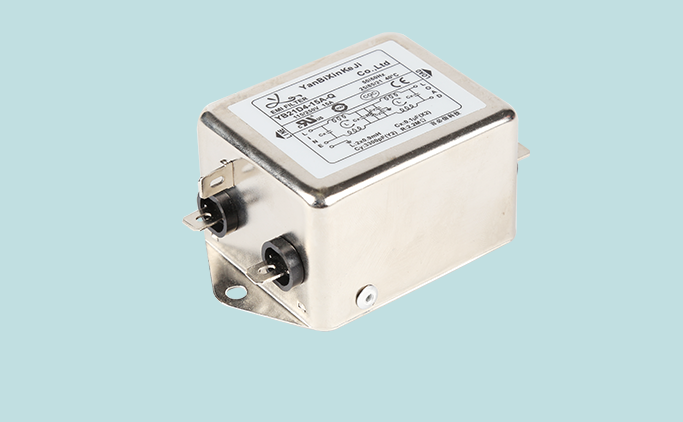

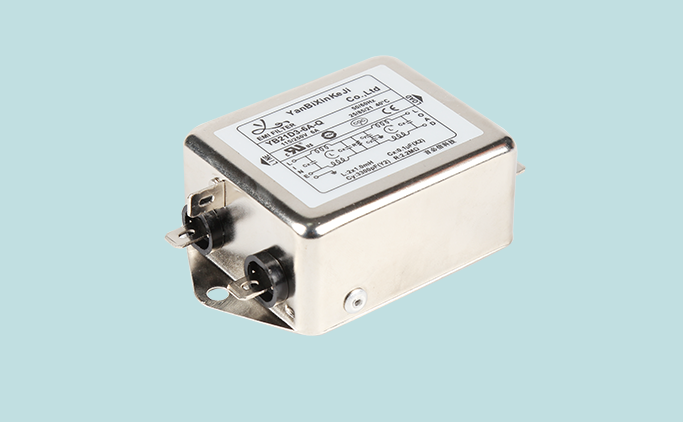

YB-35单相高性能滤波器

发布时间:2019 点击量:1045

{$Productitle$}
    • YB-35单相高性能滤波器
    • YB-35单相高性能滤波器
    • YB-35单相高性能滤波器
    • YB-35单相高性能滤波器
    • YB-35单相高性能滤波器

Designed for increased requirements

加强滤波设计

Designed for increased requirements

加强滤波设计

Very high differential and common-mode attenuation

优异的差模和共模衰减

Approvals(认证):





Technical Data 技术参数

 Max continuous operating voltage(最大电压):  250VAC,50/60Hz
 Operating frequency(工作频率):  DC to 400Hz
 Rated currents(额定电流):  1~50A@40°C
 High potential test voltage(耐电压):  L-N 1450VDC
   L/N-G 2000VAC/2250VDC
 Climatic category(气候类别):  -25°C~+85°C(25/85/21)
 Design corresponding to(设计标准):  UL1283, CSA C22.2 No.8,
   IEC/EN 60939,
   CQC GB 15288/GB 15287-2008
 Flammability corresponding to(防火等级):  UL 94V-0




Features 产品特点

Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated 2-stage line filter with increased attenuation

--防止干扰电压的电源可能产生对设备的干扰,设计了2级滤波加强衰减。

Various terminal options allow you to select the desired connection style.

--有多种端子类型可供选择

There are a variety of parts and combinations to meet different customers' EMC tests

--有多种零件组合搭配,来满足不同客户整机EMC测试

Customized products according to customers' requirements

--可按客户要求定制不同规格产品



Typical Applications 应用范围

Electrical and electronic equipment

--电子电气设备

Medical equipment

--医疗设备

Building automation

--建筑自动化

Office automation and datacom equipment

--办公自动化设备和数据通讯设备

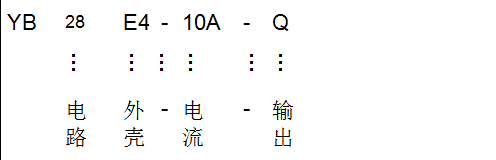

命名原则说明





Tabulates 产品列表

Model No. Rated Current
@40°C
额定电流

Terminal

Options*

输出方式

Leakage current

250V/50Hz

漏电流

Electrical

Schematic

电路图

Rated

Voltage(V)

额定电压

Operating

Frequency(Hz)

工作频率

型号
YB35E4-1A 1A Q S W <0.8mA Fig.1 115/250V 50/60Hz
YB35E4-2A 2A Q S W Fig.1
YB35E4-3A 3A Q S W Fig.1
YB35E4-4A 4A Q S W Fig.1
YB35E4-6A 6A Q S W Fig.1
YB35E4-8A 8A Q S W Fig.1
YB35E4-10A 10A Q S W Fig.1
YB35E4-15A 15A Q S - Fig.1
YB35D1-1A 1A Q - W Fig.1
YB35D1-2A 2A Q - W Fig.1
YB35D1-3A 3A Q - W Fig.1
YB35D1-4A 4A Q - W Fig.1
YB35D1-6A 6A Q - W Fig.1
YB35D2-6A 6A Q S W Fig.1
YB35D2-8A 8A Q S W Fig.1
YB35D2-10A 10A Q S W Fig.1
YB35D2-15A 15A Q S - Fig.1
YB35D3-8A 8A Q S W Fig.1
YB35D3-10A 10A Q S W Fig.1
YB35D3-15A 15A Q S - Fig.1
YB35D4-10A 10A Q S W Fig.1
YB35D4-15A 15A Q S - Fig.1
YB35D4-20A 20A Q S - Fig.1
YB35D5-15A 15A Q S - Fig.1
YB35D5-20A 20A Q S - Fig.1
YB35D5-30A 30A - S - Fig.1
YB35D6-20A 20A - S - Fig.1
YB35D6-30A 30A - S - Fig.1
YB35F1-20A 20A - S - Fig.1
YB35F1-30A 30A - S - Fig.1
YB35F2-30A 30A - S - Fig.1
YB35F2-40A 40A - S - Fig.1
YB35F2-50A 50A - S - Fig.1
YB35F3-50A 50A - S - Fig.1

*Q: Fast-on 6.35x0.8mm     S: solder 4.0x0.8mm     W: Wire UL1015 18AWG




Electrical schematic 电路图

                            Standard type



                                 Fig.1

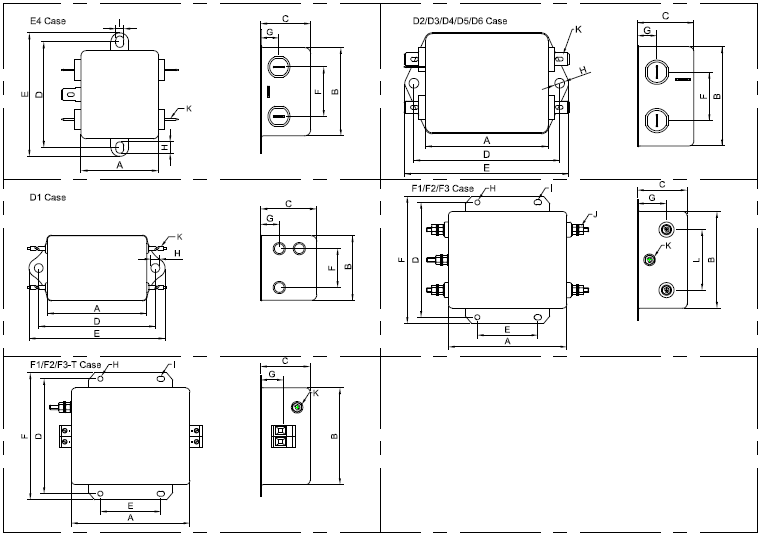

Mechanical Dimension外形图(Unit: mm)




Case E4 D1 D2 D3 D4 D5 D6 F1 F2 F3 Tolerances
公差
A 44.5 51 51 63 63 73 94 72 98 120 ±1
B 50.5 33 51 51 51 56 55 65 80 100 ±1
C 30 29 21 29 38 44.5 44.5 39 41 50 ±1
D 61.5 60 63 75 75 87 104 75 95 115 ±0.15
E 70.5 68 72 85 85 98 118 45 50 80 ±1
F 28 20 27 25 27 30 30 35 50 60 ±0.5
G 10.5 10 10 10 15.5 16 15 22 24 26 ±0.5
H 6 4.5 4.5 5 4.5 4.5 4.5*6 4.2 4.2 4*6 ±0.15
I 4.5 4.2*6.2 4.2*6.2 4*6 ±0.15
J M4/M6 M4/M6 M4/M6
K 6.3*0.8 18awg 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 M4 ±0.15
L 35 50 60 ±2




Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统,IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                            1A                                                                           3A



                            6A                                                                            8A



                          10A                                                                             20A
