直流电源滤波器

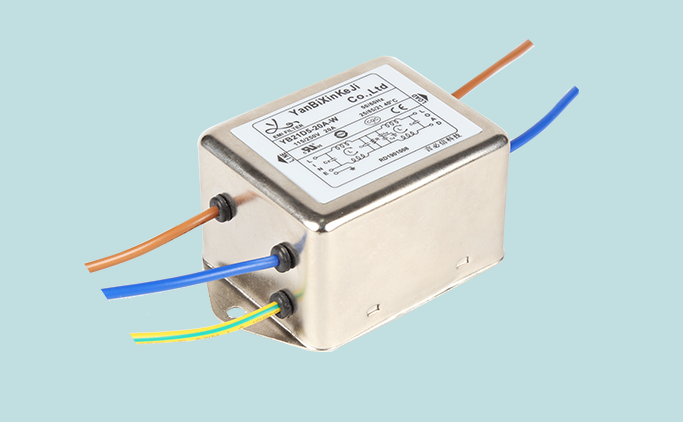

YD-12直流电源滤波器

发布时间:2019 点击量:4643

{$Productitle$}
    • YD-12直流电源滤波器
    • YD-12直流电源滤波器
    • YD-12直流电源滤波器

Rated currents from 1 to 100A

额定电流1~100A

General purpose filtering performance

通用滤波性能

Optimized for DC supplied applications

优化直流供电应用

Approvals(认证):





Technical Data 技术参数


 Max continuous operating voltage(最大电压):  250VDC
 Operating frequency(工作频率):  DC
 Rated currents(额定电流):  1~100A@40°C
 High potential test voltage(耐电压):  L-N 750VDC
   L/N-G 1414VDC
 Climatic category(气候类别):  -25°C~+85°C(25/85/21)
 Design corresponding to(设计标准):  UL1283, CSA C22.2 No.8,
   IEC/EN 60939,
   CQC GB 15288/GB 15287-2008
 Flammability corresponding to(防火等级):  UL 94V-0




Features 产品特点

Can be used to cover a broad range of usage and they  offer a good size/amperage ratio

--紧凑的体积,能够应用在各种场合中。

YD11 filters are also available as two-stage filters(YD21) for more noisy environmment

--YD11系列滤波器也可以串2个当做YD21系列产品使用在嘈杂环境中。

There are a variety of parts and combinations to meet different customers' EMC tests

--有多种零件组合搭配,来满足不同客户整机EMC测试

Customized products according to customers' requirements

--可按客户要求定制不同规格产品



Typical Applications 应用范围

Electrical and electronic equipment

--电子电气设备

Medical equipment

--医疗设备

Datacom equipment

--通讯设备

Office automation equipment

--办公自动化设备



命名原则说明


Tabulates 产品列表

Model No. Rated Current
@40°C
额定电流
Terminal Options*
输出方式

Bleeder resistor(optional)

泄放电阻R(可选)

Electrical

Schematic

电路图

Rated

Voltage(V)

额定电压

Operating

Frequency(Hz)

工作频率

型号
YD12E3-1A 1A Q - W - Fig.1 12~250 DC
YD12E3-3A 3A Q - W - Fig.1
YD12E3-6A 6A Q - W - Fig.1
YD12E4-1A 1A Q S W - Fig.1
YD12E4-3A 3A Q S W - Fig.1
YD12E4-6A 6A Q S W - Fig.1
YD12E4-8A 8A Q S W - Fig.1
YD12E4-10A 10A Q S W - Fig.1
YD12E4-15A 15A Q S - - Fig.1
YD12E4-20A 20A Q S - - Fig.1
YD12D1-1A 1A Q - W - Fig.1
YD12D1-3A 3A Q - W - Fig.1
YD12D1-6A 6A Q - W - Fig.1
YD12D2-6A 6A Q S W - Fig.1
YD12D2-8A 8A Q S W - Fig.1
YD12D2-10A 10A Q S W - Fig.1
YD12D2-15A 15A Q S - - Fig.1
YD12D2-20A 20A Q S - - Fig.1
YD12D3-10A 10A Q S W - Fig.1
YD12D3-15A 15A Q S - - Fig.1
YD12D3-20A 20A Q S - - Fig.1
YD12D3-30A 30A - S - - Fig.1
YD12D4-30A 30A - S - - Fig.1
YD12D5-30A 30A - S - - Fig.1
YD12F1-30A 30A - S - - Fig.1
YD12F1-40A 40A - S - - Fig.1
YD12F2-50A 50A - S - - Fig.1
YD12F2-60A 60A - S - - Fig.1
YD12F3-100A 100A - S - - Fig.1
YD12F3-200A 200A - S - - Fig.1

*Q: Fast-on 6.35x0.8mm      S: Screw lug     W: Wire UL1015 18AWG




Electrical schematic 电路图

                    Standard type

                              Fig.1



Mechanical Dimension外形图(Unit: mm)




Case E3 E4 D1 D2 D3 D4 D5 F1 F2 F3 Tolerances
公差
A 32 44.5 51 51 63 63 73 72 98 120 ±1
B 46 50.5 33 51 51 51 56 65 80 100 ±1
C 22.5 30 29 21 29 38 44.5 39 41 50 ±1
D 54 61.5 60 63 75 75 87 75 95 115 ±0.15
E 62 70.5 68 72 85 85 98 45 50 80 ±1
F 24 28 20 27 25 27 30 35 50 60 ±0.5
G 12.5 10.5 10 10 10 15.5 16 22 24 26 ±0.5
H 4.5 6 4.5 4.5 5 4.5 4.5 4.2 4.2 4*6 ±0.15
I 4.5 4.2*6.2 4.2*6.2 4*6 ±0.15
J M4/M6 M4/M6 M8/M10
K 6.3*0.8 6.3*0.8 18awg 6.3*0.8 6.3*0.8 6.3*0.8 6.3*0.8 M4 M4 M6/M8 ±0.15
L 35 50 60 ±2




Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统,IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                             1A                                                      6A



                              8A                                                        10A

                          20A                                                       30A
